OAL Classic

AFM OAL Classic radiant heat shrink tunnel for tamper evident banding and shrink sleeve labeling applications

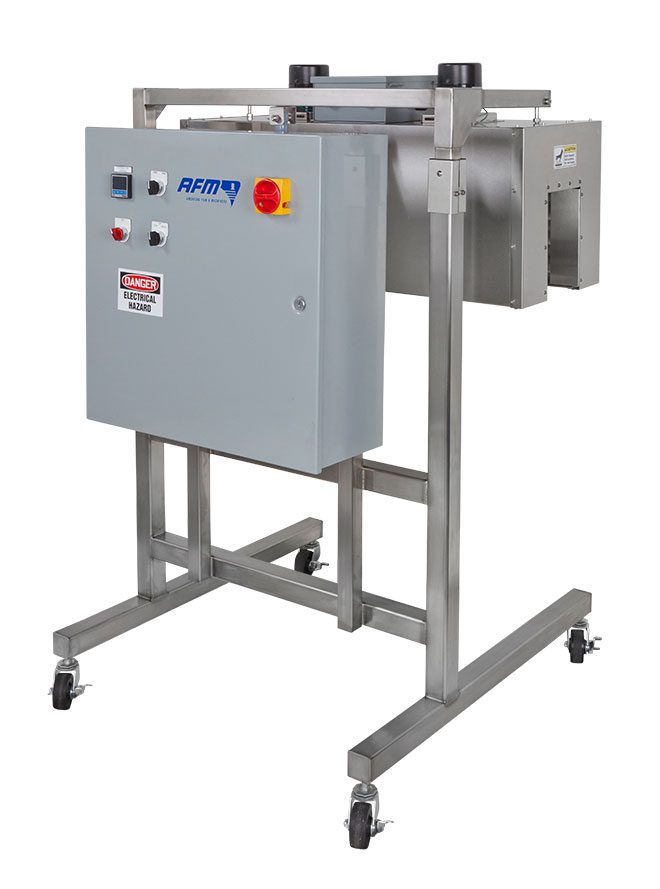

The OAL Classic Radiant Heat Shrink Tunnel for Shrink Sleeve Labeling

The OAL Classic Radiant Heat Tunnel for shrink sleeve label and tamper evident band application from American Film & Machinery is designed for middle, full body, combo packs, and full body and cap shrink applications. OAL Classic is a perfect addition to shrink labeling lines in manufactured goods industries including food and beverage, pharmaceutical, nutraceutical, health and beauty, consumer goods, and chemical products.

Efficient Operation

The OAL Classic Electric Heat Shrink Tunnel is a versatile and accurate recirculating heat tunnel with high efficiency blowers, adjustable heater element locations, and digital time proportional temperature control with a solid state contactor. The adjustable IR heater element locations allow the tunnel to be set up for a wide variety of applications. The OAL Classic provides optimal shrink control and high quality finish on a number of films including PVC, PETG, OPS, and PLA.

Constructed for Your Environment

Designed to work as an integral part of your day-to-day packaging operations, the OAL Classic tunnel is constructed from rugged stainless steel and supplied with an electrically adjustable stainless steel stand. Motorized height control makes installation easy and can be completed in minutes using standard tools to have you up and running, saving your company money and increasing your ROI. Due to its versatility and reliability, the OAL Classic Electric Heat Tunnel is also ideal for the changing needs of contract packagers.

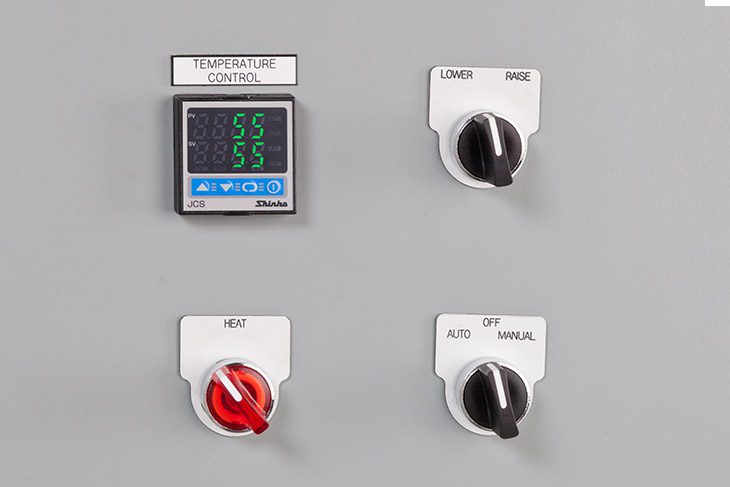

AFM OAL Classic radiant heat shrink tunnel operator controls

The Operator side controls are conveniently placed for ease of adjustment

AFM OAL Classic radiant heat shrink tunnel independent air flow motors

Two independent air flow motors maximize consistent film shrink

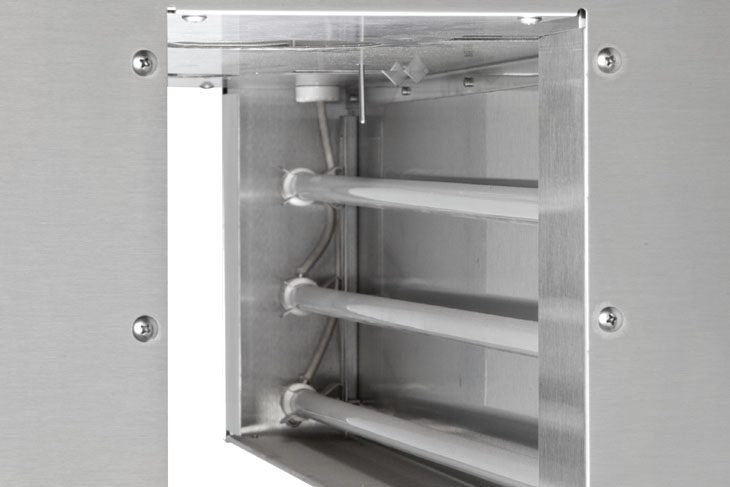

AFM OAL Classic radiant heat shrink tunnel heat elements

High quality radiant heating elements provide uniform heat distribution to ensure a quality finish

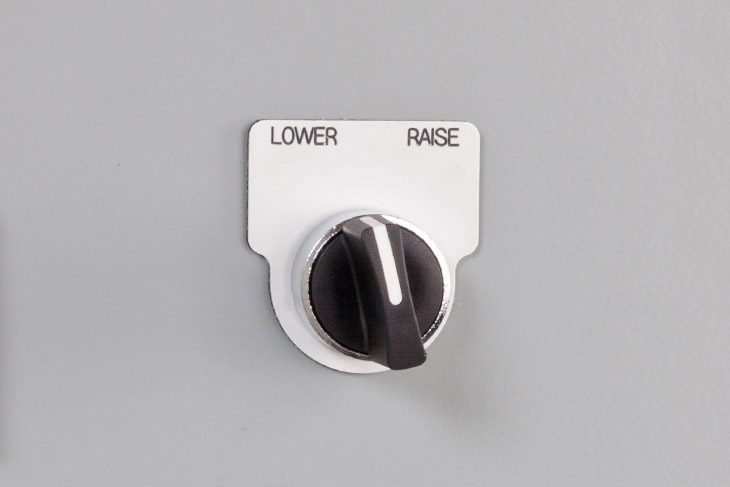

AFM OAL Classic radiant heat shrink tunnel motorized height adjustment

Motorized height control makes installation quick and easy; setup and changeover can be completed in minutes



  • OAL CLASSIC
TECHNICAL SPECIFICATIONS OF THE OAL CLASSIC

  • Power: 3 Phase 240/480V 50/60Hz
  • Film Thickness: 0.035mm – 0.07mm
  • Motor: AC 1/2 x 2
  • Machine Dimensions: 800mm (W) x 900mm (L) x 1480mm (H) 31.5” (W) x 35.4” (L) x 58.2” (H)
  • Tunnel Dimensions: 150mm (W) x 940mm (L) x 200mm (H) 5.9” (W) x 37” (L) x 7.9” (H)
  • Temperature: 400ºF
