LX-350

AFM LX-350 shrink sleeve labeler for tamper evident banding and shrink sleeve labeling applications

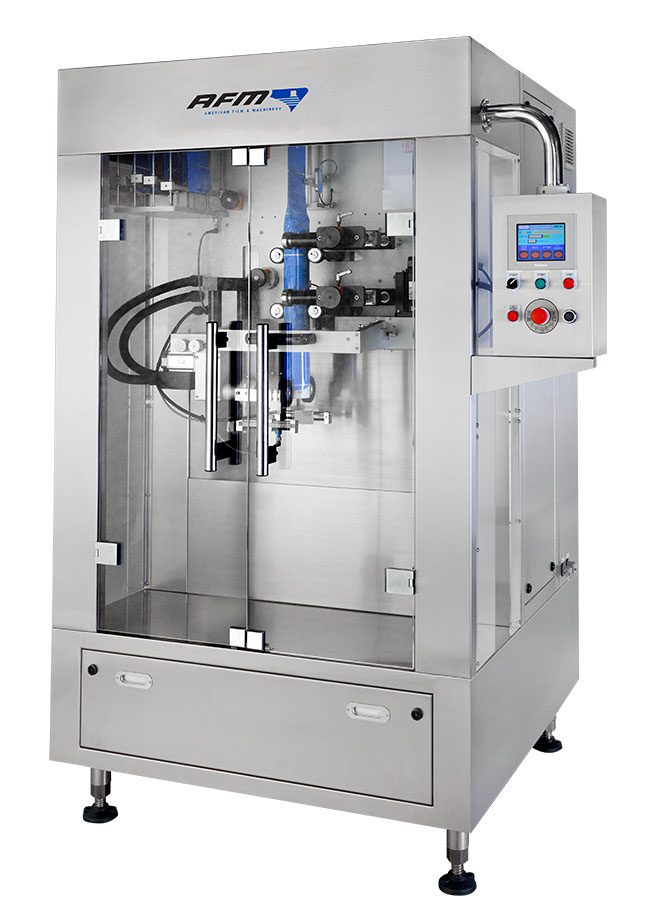

The LX-350 Shrink Sleeve Label Applicator

The LX-350 Shrink Sleeve Label and Tamper Evident Band applicator from American Film & Machinery is a premium range labeling machine designed for middle, full body, and full body and cap applications. The LX-350 is designed for high volume production rates and is a perfect solution for industries including food and beverage, pharmaceutical, nutraceutical, health and beauty, consumer goods, chemical, and other manufactured goods. Due to the versatility of the system, the LX-350 is also ideal for the changing needs of contract packagers.

Maximize Your Production

LX-350 is an in-line single-head mandrel style labeling system designed and engineered to meet the demands of your workflow. The LX-350 can accommodate any conveyor while the machine’s sturdy design and construction provides 24 hour operation. The innovative standard dual unwind system allows users to maximize production with only a brief splicing stop. Product runs are programmed with the user-friendly touch-screen control panel HMI, featuring standard and custom menus that can be password protected for an added layer of security.

Built to Last

Every LX Series machine is designed with servo driven, PLC controlled label drive rollers, interchangeable cutter assembly, and label shooting wheels to provide accurate and consistent shrink sleeve labeling. LX-350 is constructed using 304 grade stainless steel to provide strength and reduce vibration while offering quiet operation. LX-350 has been engineered to handle oval and round containers made of plastic, glass, or metal at speeds up to 500cpm. Users also have the option of purchasing additional mandrels for non-cylindrical containers. The multiple blade rotational cutting mechanism provides extremely smooth, even cutting of film ranging from 35 microns up to 70 microns.

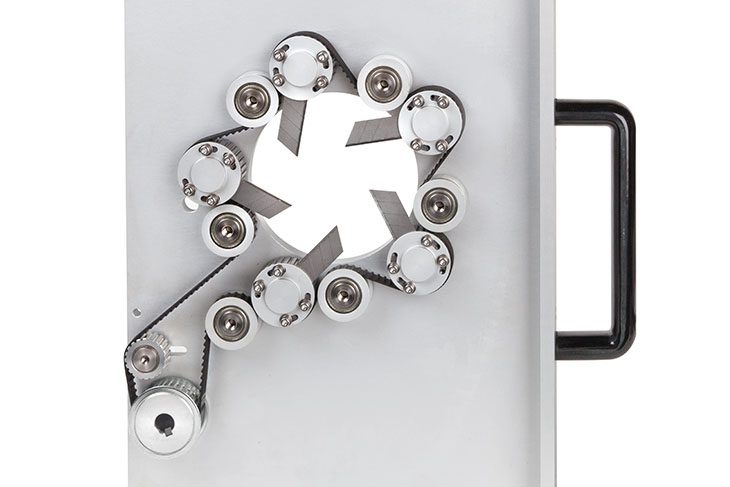

AFM LX-350 shrink sleeve labeler's multi-blade rotational cutting mechanism for smooth and even shrink film cutting

The multiple-blade rotational cutting mechanism provides smooth and even cutting at high speeds

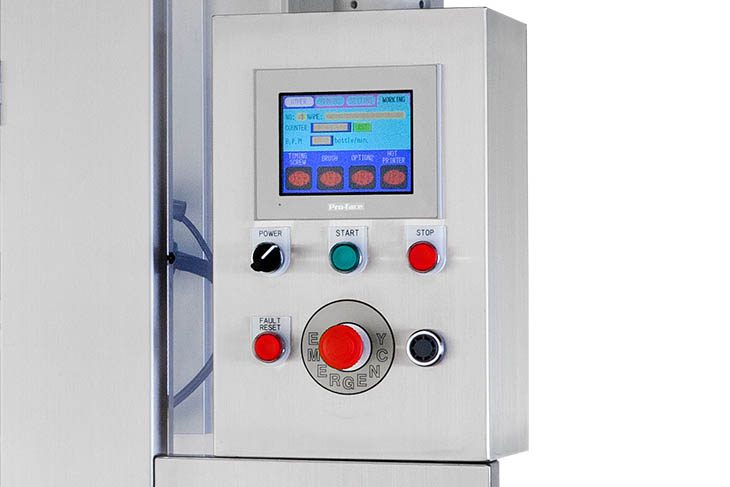

AFM LX-350 shrink sleeve labeler's control interface for programming shrink sleeve product runs

Product runs are programmed with the user-friendly touchscreen control interface

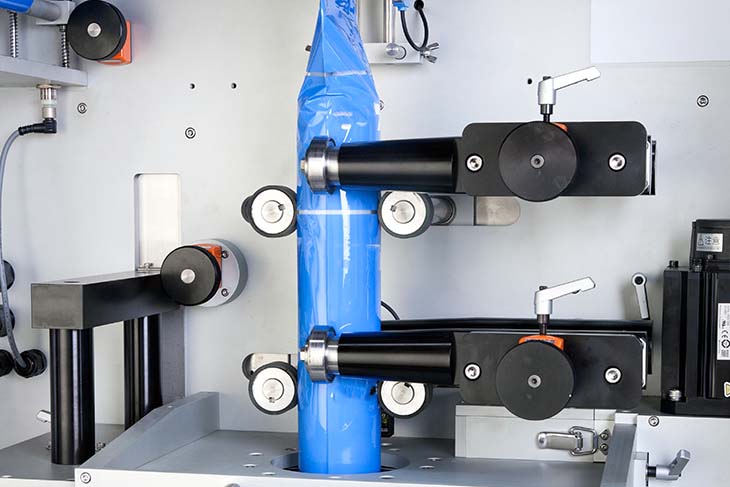

AFM LX-350 shrink sleeve labeler's bullet style mandrel for applying shrink sleeve labels at high speeds

The bullet style mandrel is ideal for oval and round containers made of plastic, glass, or metal

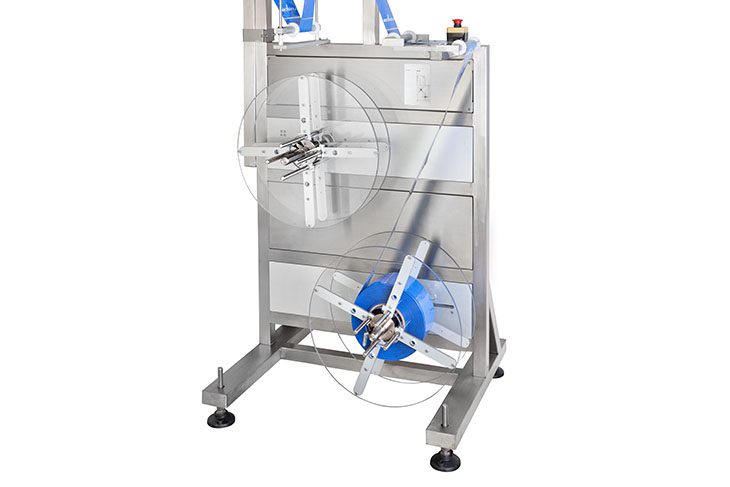

AFM LX-350 shrink sleeve labeler's dual film unwind maintains shrink film tension during high speed operations

Standard dual roll film unwind and tension control systems maintain optimal in-feed tension needed for high speed operations



  • COMPONENTS
  • TECHNICAL SPECS
  • OPTIONAL FEATURES
  • VIDEOS
STANDARD COMPONENTS OF THE LX-350

  • Multiple dancer in feed tension control
  • Fin-and-bullet mandrel for cylindrical containers
  • Photo-eye sensor for registered cutting
  • Interchangeable cutting assembly in one of S/M/L sizes
  • Timing screw assembly with VFD controlled from HMI
  • Line control photo sensors
  • Brush-down assembly
  • Innovative servo mechanism, PLC and HMI
  • Dual-roll label feeding unwinder
  • Motorized height adjustment
  • Diagnostic Software = easy troubleshooting

TECHNICAL SPECIFICATIONS OF THE LX-350

  • Power: 3 Phase 220/380/400/440V 50/60Hz
  • Film Thickness: 0.035mm – 0.07mm
  • Film Lay Flat: 50mm – 240mm
  • Cut Length: 30mm – 200mm
  • Machine Dimensions: 1275mm (W) x 1250mm (L) x 2111mm (H) 50.2” (W) x 49.2” (L) x 83.1” (H)
  • Speed: 50 – 500CPM

OPTIONAL FEATURES & COMPONENTS FOR THE LX-350

  • Mandrel for non-cylindrical containers
  • Label twister for orientation
  • Vertical, continuous perforation unit
  • Horizontal and T-perf unit
  • Date-coder, hot stamp models
  • Dual timing screw assembly
  • Label stopper, cradle belt design
  • Label tamping assembly
  • AB or Siemens servo, PLC, electric components and HMI
  • Accumulation Unwinder System

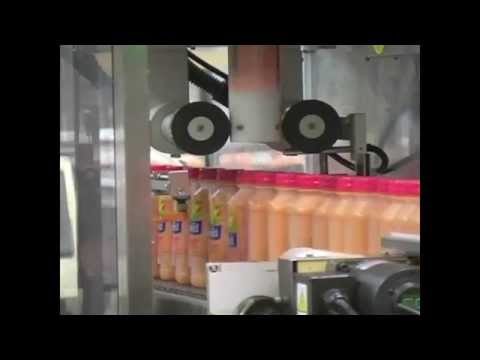

THE LX-350 IN ACTION
