LX-150

AFM LX-150 shrink sleeve labeler for tamper evident banding and shrink sleeve labeling applications

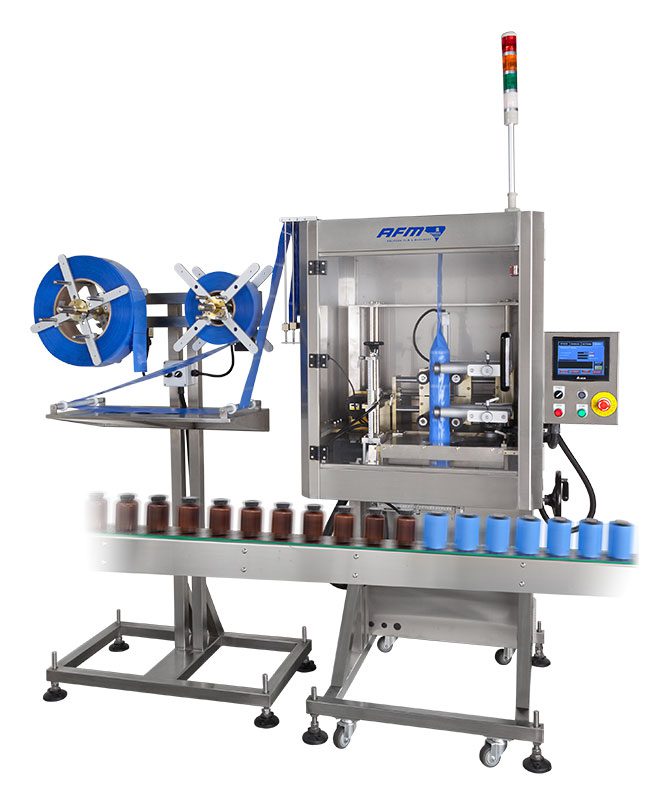

The LX-150 Shrink Sleeve Label and Tamper Evident Band Applicator

The LX-150 Shrink Sleeve Label and Tamper Evident Band applicator from American Film & Machinery is a mid-range labeling machine designed for middle, full body, and full body and cap applications. The LX-150 is designed for low to moderate production rates and is a perfect solution for industries including food and beverage, pharmaceutical, nutraceutical, health and beauty, consumer goods, chemical, and other manufactured goods. Due to the versatility of the system, the LX-150 is also ideal for the changing needs of contract packagers.

Increase Your Workflow

LX-150 is an in-line single-head mandrel style labeling system engineered to meet the demand of your workflow. The LX-150 can be rolled up to any conveyor to provide accurate shrink sleeve placement up to 300 products per minute. The machine’s sturdy Good Manufacturing Practices (GMP) design and construction provides for 24 hour operation, while its’ standard dual unwind system allows continued operation with only a brief splicing stop. Product runs are programmed with the user-friendly touch-screen control panel HMI, featuring standard and custom menus that can be password protected for an added layer of security.

Guaranteed Precision. Quick Changeover.

Size change overs are simple and quick. The cut length can be changed electronically by utilizing the control panels’ touch screen interface. For different product diameters, a new timing screw and bullet (mandrel) can be installed in minutes, while different product heights are accommodated by raising or lowering the machine with a turn-screw mechanism. The LX-150 comes with our quick change system for switching mandrels with a turn of a knob. Along with the mandrel, the cutter assembly has only two levers to turn, keeping your downtime to a minimum.

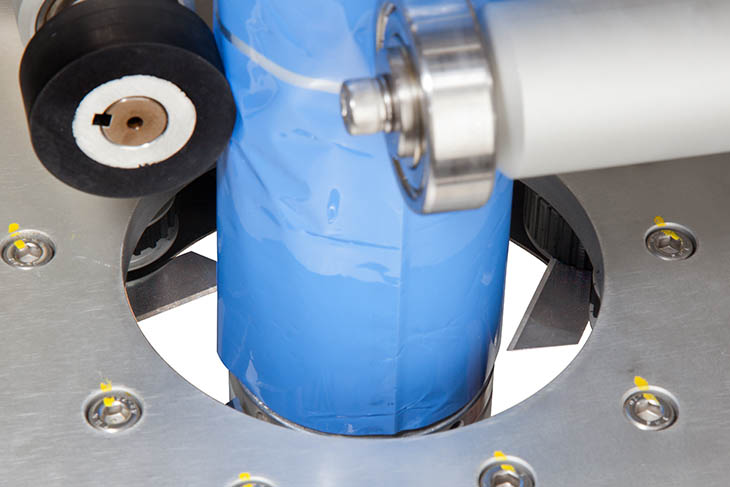

AFM LX-150 shrink sleeve labeler's multi-blade cutting mechanism for smooth shrink film cutting

The multiple-blade rotational cutting mechanism provides smooth and even cutting at high speeds.

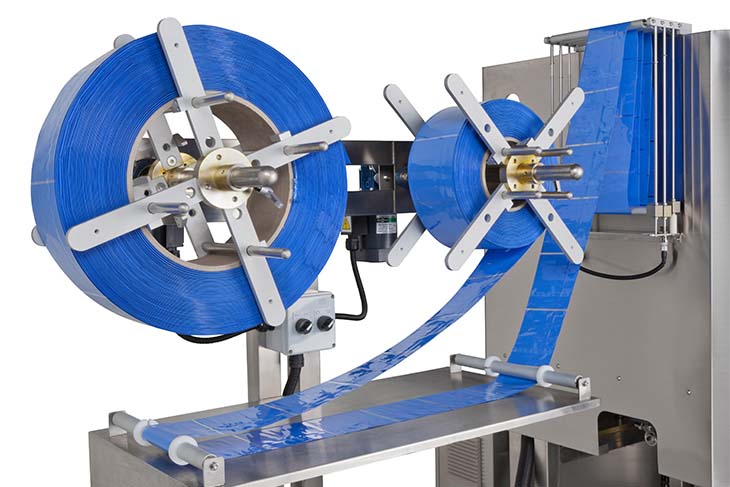

AFM LX-150 shrink sleeve labeler's dual film unwind maintains shrink film tension during high speed operations

Standard dual roll film unwind and tension control systems maintain optimal in-feed tension needed for high speed operations.

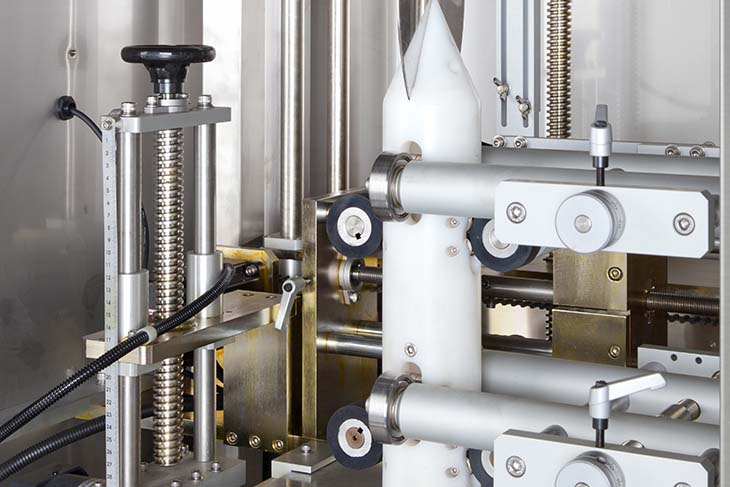

AFM LX-150 shrink sleeve labeler's bullet style mandrel for applying shrink sleeve labels

The bullet style mandrel is ideal for oval and round containers made of plastic, glass, or metal

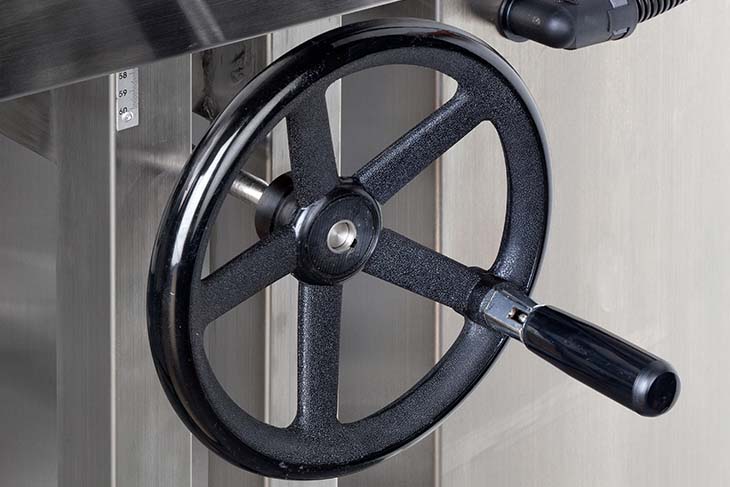

AFM LX-150 shrink sleeve labeler's height adjustment hand crank

Easy-to-use hand crank allows for ideal height adjustment on virtually any conveyor.



  • COMPONENTS
  • TECHNICAL SPECS
  • OPTIONAL FEATURES
  • VIDEOS
STANDARD COMPONENTS OF THE LX-150

  • Round cylindrical mandrel
  • Cutter assembly
  • Single timing screw unit
  • Photo eye for registered cutting
  • Label brush down device
  • Dual roll unwind system and tension control

TECHNICAL SPECIFICATIONS OF THE LX-150

  • Power: 3 Phase 220/380/400/440V 50/60Hz
  • Film Thickness: 0.035mm – 0.07mm
  • Film Lay Flat: 40mm – 240mm
  • Cut Length: 30mm – 200mm
  • Machine Dimensions: 853mm (W) x 1090mm (L) x 1850-2150mm (H) 33.6” (W) x 42.9” (L) x 72.8” – 84.6” (H)
  • Speed: 50 – 300CPM

OPTIONAL FEATURES & COMPONENTS FOR THE LX-150

  • Mandrel for non-cylindrical containers
  • Cradle belt label stopper
  • Vertical and T perforation units
  • Label tamp down device
  • Date code / lot code printer
  • Dual timing screw assembly
  • Motorized height adjustment
  • Siemens PLC and servo motor option
  • Panasonic servo motor option
